The new GTR510 makes gate automation easier than ever!
Featuring the latest in sleek modern styling with an almost silent operation, this convenient Sliding Gate Motor will instantly convert your existing gate into an automated system.
Designed for all conditions with simple installation, operation and adjustments, you’ll never have to get out of your car ever again! It will also provide additional 24/7 security to your property.
From Australia’s leading provider of electric gate solutions, this new model is made for sliding gates up to 800kgs.
5 reasons you’ll love new GTR510
- Durable, high-quality materials made for Australian conditions
- Open your gate without having to leave your car
- Improved 24V DC motor for almost silent operation
- Simple to follow installation instructions with only basic tools needed
- Modern styling and neutral colours blend naturally with exteriors
Features
- 240V AC controller / Optional 24V DC Power
- Optional power supply 240V AC/24V AC (GTR218) sold separately
- 24V DC solar compatible (GTR097) sold separately
- Spring limit switch for easy adjustment
- Suitable for Sliding Gates up to 800kg
- Manual release function
- Water/dust resistant to IP44
- Heavy Duty Motor
- Adjustable opening/closing time
- Can pair up to 10 additional remotes
- Programmable safety stop function
- Operating temperature -20/+50° C
- 100% UV protection

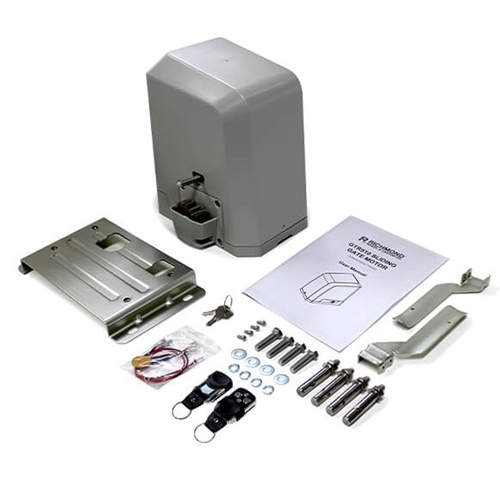

Kit Contents:
- 1 x AC Power Sliding Gate Motor
- 2 x Remotes
- 2 x Manual release keys
- 2 x Limit Travel Stops
- 1 x Motor Mounting Plate
- Fixing brackets
- Instruction manual
Technical Specifications:
- 240V AC power
- Motor power supply 24VDC
- Suitable for gates up to 800kgs
- Spring limit switch sensor
- 15M per minute speed
- IP rating: IP44
Download the GTR510 instruction manual
The GTR510 Sliding Gate Motor is a 24V DC system engineered for dependable daily use on heavy residential or light commercial sliding gates. Built around a quiet and efficient DC drive, it handles gates up to 800kg and maintains smooth movement at a consistent operating speed. The housing features 100% UV protection and an IP44 rating, allowing it to operate reliably in outdoor environments exposed to rain, dust and high sun. Its broad operating temperature range makes it suitable for varied Australian conditions.
The motor’s control system offers practical benefits for installers and site operators, including adjustable opening and closing times, easy limit setting and built-in current sensing for obstruction detection. The design supports modular power options, such as battery backup or solar via compatible accessories, making it suitable for locations with unreliable or limited mains power. With capacity for up to 12 remotes and compatibility with safety accessories like photocells, the GTR510 provides a flexible, scalable platform for secure and efficient gate automation.
| Motor Power Supply | 24V DC |
|---|---|
| Wattage | 144W |
| Gate Moving Speed | 15m/min |
| Max Gate Weight (kg) | 800 |
| Max Gate Length (m) | 8 |
| Remote Control Distance | up to 30m |
| Limit Switch | Spring limit switch |
| IP Rating | IP44 |
| Working Temperature | –20 °C to +50 °C |
