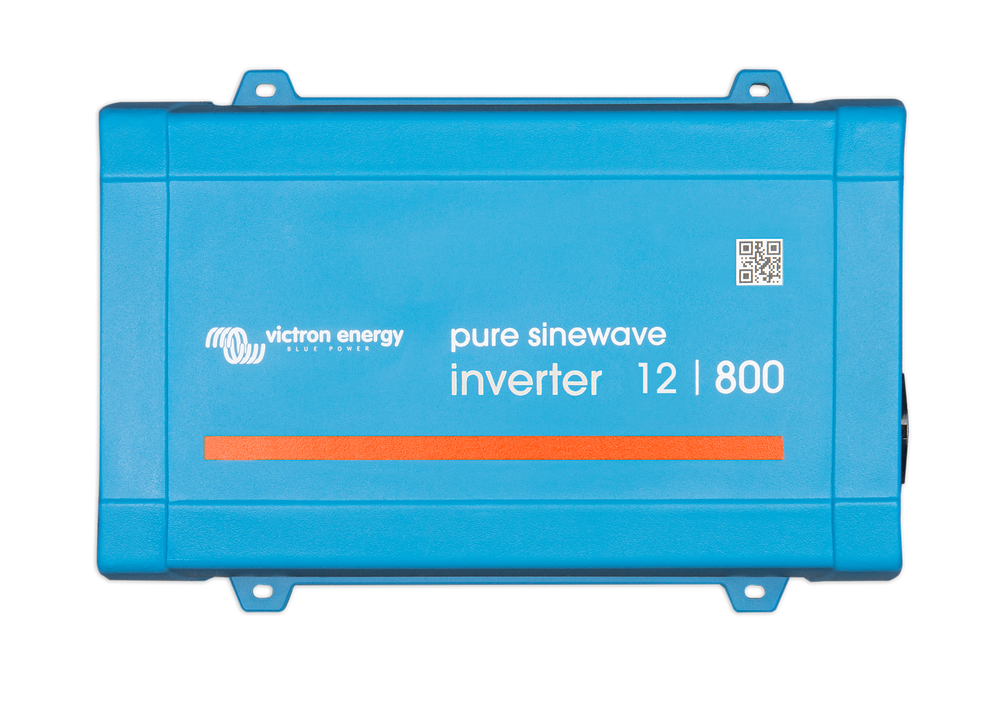

The Victron Phoenix Inverter VE.Direct turns battery power into clean 230V mains power with a true sine wave, safe for laptops, TVs, power tools, fridges and other sensitive gear. These are the compact, plug-and-go Phoenix models, fitted with an Australian (AS/NZS 3112) power outlet, so you can plug appliances straight in. They're built for caravans, campers, boats, work utes and small off-grid setups.
Choosing a model
Match the battery voltage to your system (12V, 24V or 48V), then choose the power to suit the largest load you'll run continuously. The VA rating is the model name. The real continuous output is lower, so check the table below. Motors and compressors need extra headroom to start.
Key features
- Pure sine wave output: clean power for electronics, chargers, motors and induction loads.
- Australian outlet fitted (AS/NZS 3112), AS/NZS 4763 safety certified.
- VE.Direct port: add the VE.Direct Bluetooth dongle to monitor and configure from your phone, or connect to a Cerbo GX for remote monitoring.
- ECO mode: drops to standby when nothing's running and wakes automatically when a load is switched on, saving battery power.
- High peak power for starting motors and compressors.
- Remote on/off port and adjustable low-battery shutdown and restart levels.
- Protected against overload, short circuit, over temperature and battery voltage too high or too low.
Power ratings
| Model | Cont. 25°C | Cont. 40°C | Peak | Weight |
| 250VA | 250W | 200W | 400W | 2.7 kg |
| 375VA | 375W | 300W | 600W | 3.0 kg |
| 500VA | 450W | 380W | 750W | 3.5 kg |
| 800VA | 800W | 650W | 1200W | 5.5 kg |
| 1200VA | 1150W | 1000W | 1600W | 7.2 kg |
| 1600VA | 1450W | 1300W | 2100W | 8.9 kg |
Specifications
| Input voltage range | 12V: 9.2–17V | 24V: 18.4–34V | 48V: 36.8–62V |
| Output | 230VAC ±3%, 50Hz (60Hz selectable), pure sine wave |
| Max efficiency | 84–92% depending on model and voltage |
| Outlet | AS/NZS 3112 (Australian) |
| Communication | VE.Direct (Bluetooth via optional dongle) |
| Protection | Short circuit, overload, over temperature, battery voltage high/low |
| Dimensions (H x W x D) | 250–375VA: 86 x 165 x 260 mm 500VA: 86 x 172 x 275 mm 800VA: 95 x 231 x 334 mm 1200VA: 117 x 231 x 374 mm 1600VA: 117 x 231 x 395 mm |
Need a bigger inverter? See the Phoenix Inverter Smart range (1600VA–5000VA, built-in Bluetooth).
| Brand | Victron |
|---|---|
| SKU / Part No. | PIN121251310 |
| Category | Inverters |
| Weight | 2.7 kg |
| Battery voltage options | 12V, 24V, 48V |
| Power options | 250VA, 375VA, 500VA, 800VA, 1200VA, 1600VA |
| Availability | Special Order — call (07) 4052 1901 |
