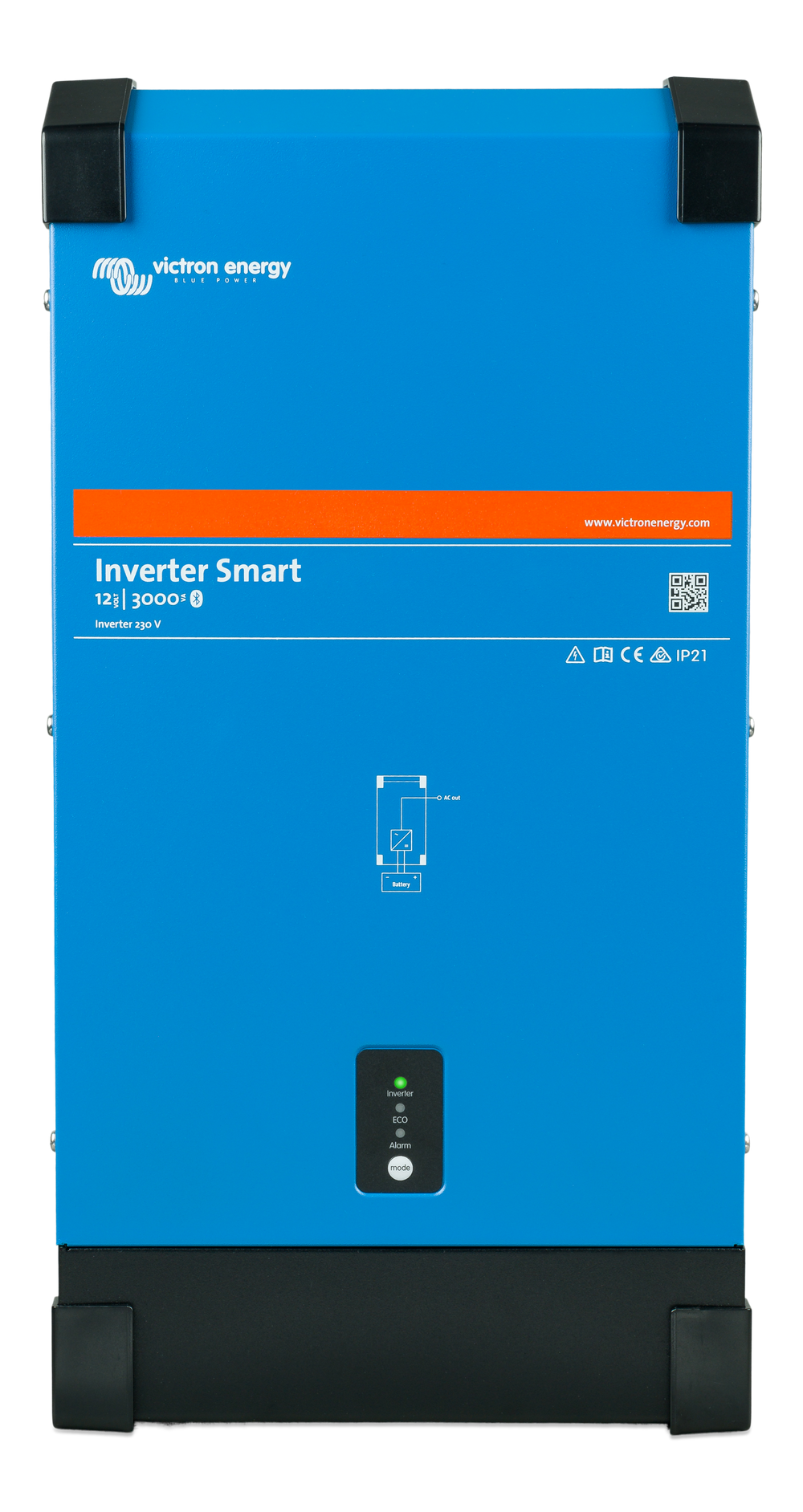

The Victron Phoenix Inverter Smart is a heavy-duty pure sine wave inverter with Bluetooth built in. It runs big loads off your battery bank: air conditioners, microwaves, coffee machines, power tools and whole-of-van or whole-of-boat AC circuits. It's built for serious caravan, marine, truck, mining and off-grid installs where power has to be clean and reliable.
Choosing a model
Choose your battery voltage, then the power rating. As a rule, use 12V up to about 3000VA. For anything bigger, 24V or 48V keeps cable sizes and currents sensible. The Smart range is hard-wired (230V screw terminals), not plug-in, so it needs installing by a licensed electrician. Want plug-in sockets? See the Phoenix Inverter VE.Direct (250–1600VA, AU outlet).
Key features
- Bluetooth and VictronConnect: monitor output, adjust settings and update firmware from your phone.
- Pure sine wave with very high peak power (up to 2× rating) for motor and compressor starts.
- High efficiency, low idle draw: up to 96% efficient, with ECO mode dropping standby consumption to as little as 0.6W.
- Battery Life feature: dynamic cut-off adjusts the low-battery shutdown point to the load, protecting your batteries.
- VE.Direct port for Cerbo GX / VRM remote monitoring, plus remote on/off.
- Protected against short circuit, overload, overheating and battery voltage high/low.
Power ratings
| Model | Cont. 25°C | Cont. 40°C | Peak |
| 1600VA (12V, 24V) | 1300W | 1200W | 3000W |
| 2000VA (24V, 48V) | 1600W | 1450W | 4000W |
| 2500VA (12V, 24V) | 2400W | 2200W | 4000W |
| 3000VA (12V, 24V, 48V) | 2400W | 2200W | 6000W |
| 4000VA (12V) | 3700W | 3400W | 6000W |
| 5000VA (24V, 48V) | 4000W | 3700W | 10000W |
Specifications
| Input voltage range | 12V: 9.3–17V | 24V: 18.6–34V | 48V: 37.2–68V |
| Output | 230VAC, 50/60Hz, pure sine wave |
| Max efficiency | 92–96% depending on model and voltage |
| Zero-load power (ECO mode) | From 0.6W |
| Battery connection | M8 bolts (2+2 on larger models) |
| AC connection | Screw terminals (hard-wired) |
| Communication | Bluetooth (VictronConnect), VE.Direct, remote on/off |
| Weight | 12 kg (1600VA) to 29 kg (24V 5000VA) |
| Brand | Victron |
|---|---|
| SKU / Part No. | PIN122161000 |
| Category | Inverters |
| Weight | 12.0 kg |
| Battery voltage options | 12V, 24V, 48V |
| Power options | 1600VA, 2500VA, 3000VA, 4000VA, 2000VA, 5000VA |
| Availability | Special Order — call (07) 4052 1901 |
