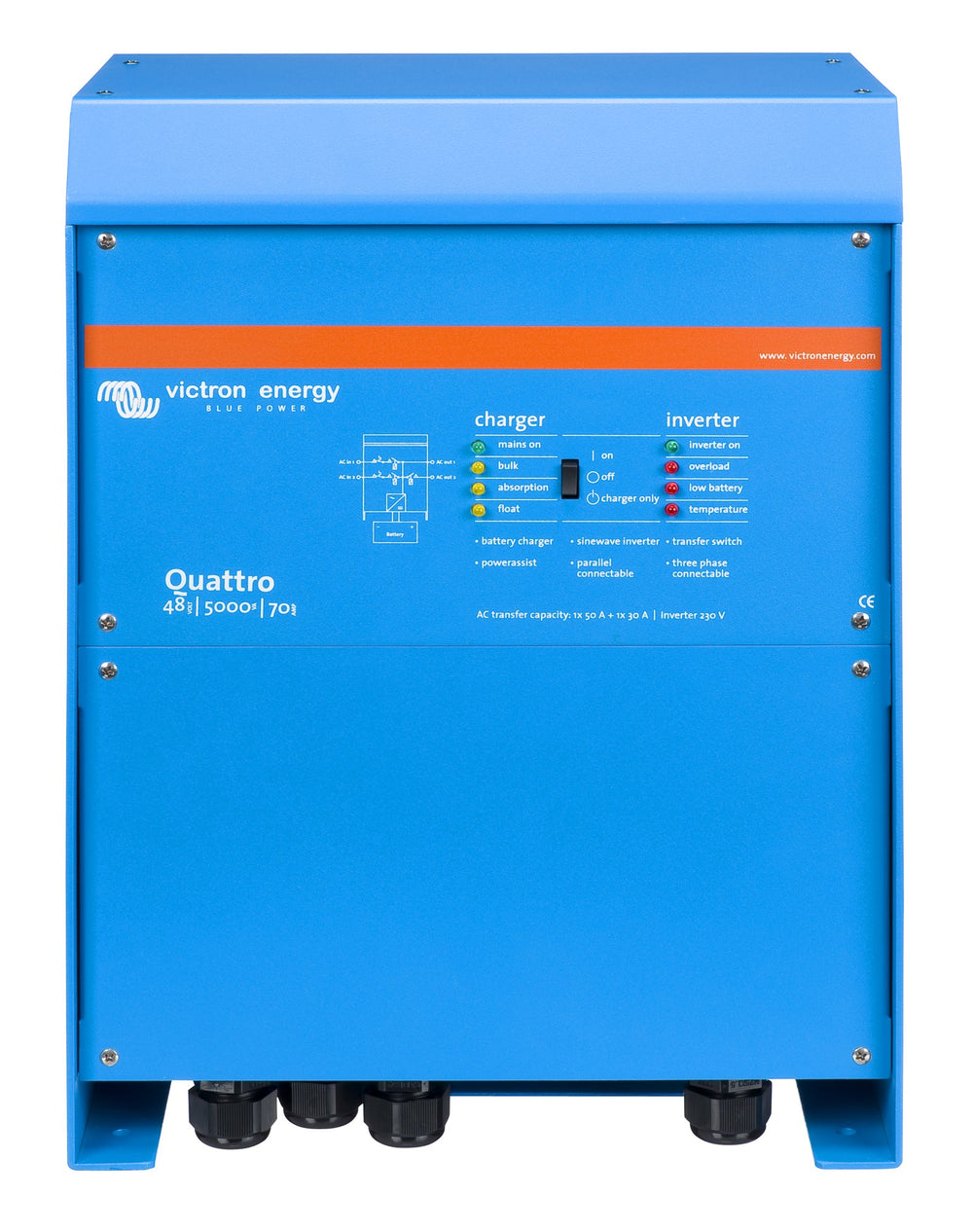

The Victron Quattro is an inverter/charger with two AC inputs and a built-in transfer switch that picks between them automatically. Connect both shore power (or grid) and a generator, and the Quattro chooses the right source without any external changeover switch. It's the choice for boats, remote homes, stations and commercial sites that run a generator alongside grid or shore power.
Key features
- Two AC inputs with automatic source selection (grid/shore and generator).
- Uninterrupted AC with under 20ms changeover when the supply drops out.
- PowerAssist and PowerControl: limits draw from a small shore supply or generator and supplements it with battery power.
- Adaptive 4-stage charger with lithium support and temperature compensation.
- Two AC outputs, one of which can shed non-essential loads when running on batteries.
- Parallel and 3-phase capable. VE.Bus connection to a Cerbo GX for VRM remote monitoring.
Models
| Model | Charger | AC inputs |
| Quattro 12/3000/120-50/50 | 120A | 2 x 50A |
| Quattro 12/5000/220-100/100 | 220A | 2 x 100A |
| Quattro 24/3000/70-50/50 | 70A | 2 x 50A |
| Quattro 24/5000/120-100/100 | 120A | 2 x 100A |
| Quattro 24/8000/200-100/100 | 200A | 2 x 100A |
| Quattro 48/5000/70-100/100 | 70A | 2 x 100A |
| Quattro 48/8000/110-100/100 | 110A | 2 x 100A |
| Quattro 48/10000/140-100/100 | 140A | 2 x 100A |
| Quattro 48/15000/200-100/100 | 200A | 2 x 100A |
Model code reads battery voltage / power (VA) / charger current – AC input 1 / AC input 2 current. Installation must be done by a licensed electrician.
| Brand | Victron |
|---|---|
| SKU / Part No. | QUA123020010 |
| Category | Inverter Chargers |
| Weight | 19.0 kg |
| Battery voltage options | 12V, 24V, 48V |
| Power options | 3kVA, 5kVA, 8kVA, 10kVA, 15kVA |
| Availability | Special Order — call (07) 4052 1901 |
