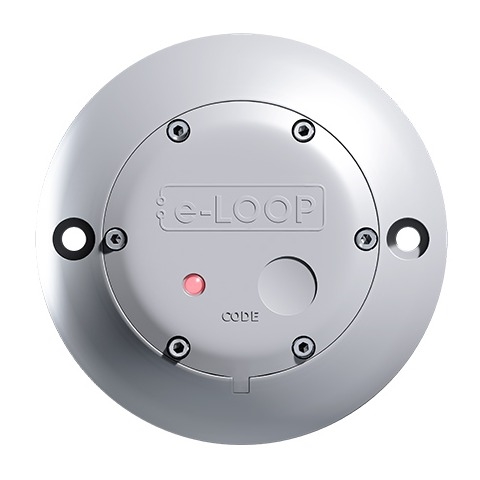

Designed to be to be easily integrated into any gate system: the e-Loop micro is the perfect product for any gate installer. The e-loop micro offers cost effective exit automation with quick and easy installation.
- Up to 25m range
- Includes a CR123a battery with a lifespan of up to 2 years
- Ultra compact design
- Compact Diameter of ~110mm
- Includes a e-Trans 20 transceiver for quick connection to your gate motor
- High security 128-Bit AES Encryption
- Quick Non-Permanent Installation
- Set-and-Forget auto calibration
- Available in Exit mode
- 2500kg maximum capacity
This accessory is compatible with all Richmond gate openers.
*To pair this product to the GTR058 double swing gate opener an adaptor must be fitted. Adaptor part number: 5GTR147SP002 (sold separately)
The e-Loop Micro’s Vehicle Detection System relies on magnetometer sensors to detect approaching vehicles. Upon detection, the system transmits this information to a nearby Microtech transceiver, facilitating gate activation/traffic control. Installation involves affixing sensors to the surface of entry or exit passages using dyna-bolts. These sensors are designed to withstand the rigors of vehicle traffic.
| Range | Up to 25 metres |
|---|---|
| Encryption | 128-bit AES |
| Battery Type | CR123A |
| Diameter (mm) | 110 |
| Height (mm) | 23 |
| Frequency | 433.39 MHz |
| Modulation | FSK |
| Power | 3.6V 1500ma |
| Weight | 200g |
| Operating Temp | -40 to 80 degrees |
