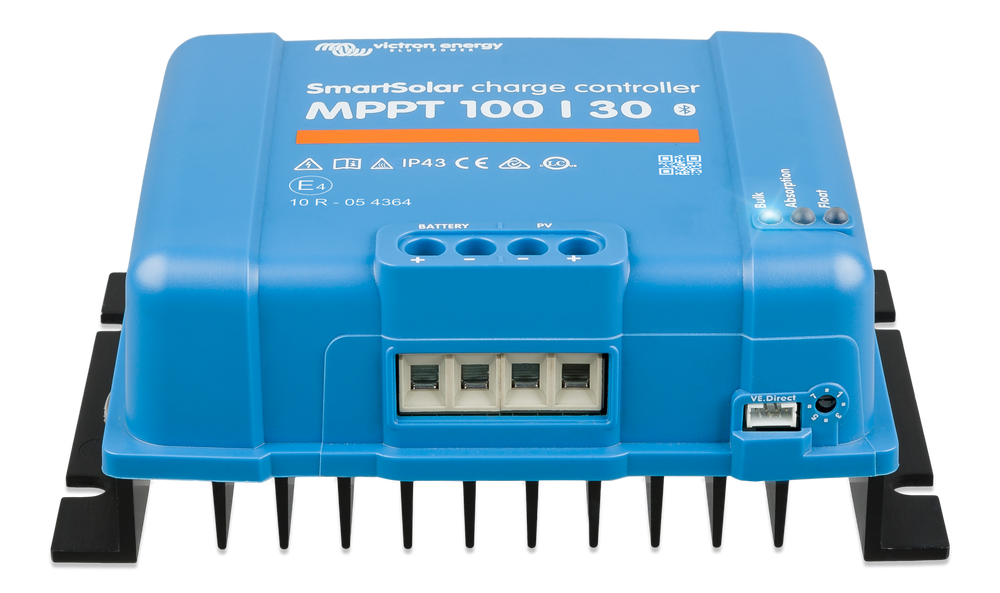

The Victron SmartSolar MPPT is the most popular solar charge controller in caravans, campers, boats and off-grid sheds, and for good reason. Its maximum power point tracking squeezes up to 30% more energy out of your panels than a basic PWM controller, it charges lead-acid and lithium batteries correctly, and built-in Bluetooth lets you see exactly what your solar is doing in the VictronConnect app.
Reading the model name: in 100/30, the first number (100) is the maximum PV open-circuit voltage in volts, and the second (30) is the maximum battery charge current in amps. Make sure your panels' cold-weather open-circuit voltage stays below the first number, and pick a charge current that suits your array size and battery bank.
Key features
- Ultra-fast MPPT tracking, so you get more energy on partly cloudy days.
- Bluetooth built in: live solar yield, 30-day history and full setup from your phone.
- Adaptive 3-stage charging with presets for AGM, gel, flooded and LiFePO4, plus fully programmable settings.
- Load output on 75/10 to 100/20 models, with low-voltage disconnect.
- VE.Smart Networking: share battery voltage, temperature and current with a SmartShunt or Smart Battery Sense for more accurate charging.
- VE.Direct port for a Cerbo GX and VRM remote monitoring.
- Automatic battery voltage detection: 12/24V (100/20 up to 48V, 150V models 12/24/36/48V).
Models
| Model | Max PV voltage | Charge current | Battery voltage |
| 75/10 | 75V | 10A | 12/24V |
| 75/15 | 75V | 15A | 12/24V |
| 100/15 | 100V | 15A | 12/24V |
| 100/20 | 100V | 20A | 12/24/48V |
| 100/30 | 100V | 30A | 12/24V |
| 100/50 | 100V | 50A | 12/24V |
| 150/35 | 150V | 35A | 12/24/36/48V |
| 150/45 | 150V | 45A | 12/24/36/48V |
Bigger arrays? See the SmartSolar MPPT 60–100A range.
| Brand | Victron |
|---|---|
| SKU / Part No. | SCC075010060R |
| Category | Solar Charge Controllers |
| Weight | 0.4 kg |
| Max PV voltage options | 75V, 100V, 150V |
| Charge current options | 10A, 15A, 20A, 30A, 50A, 35A, 45A |
| Availability | Special Order — call (07) 4052 1901 |
