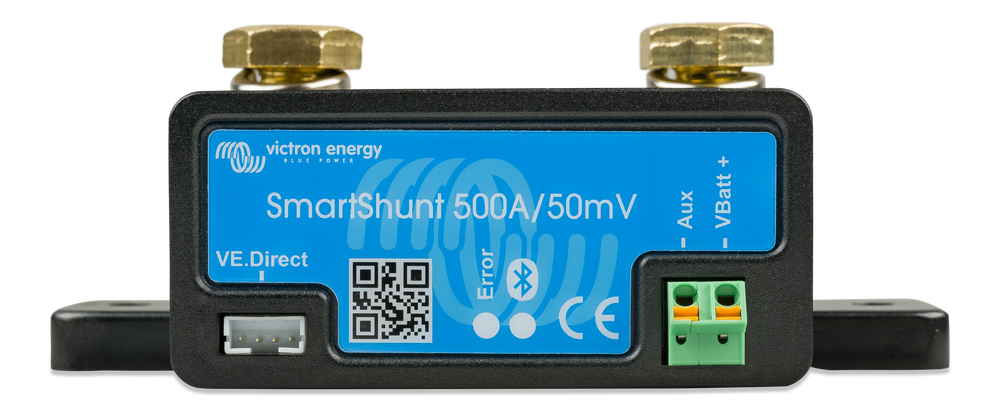

The Victron SmartShunt is a full battery monitor without a display. Your phone is the screen. It connects by Bluetooth to the free VictronConnect app and shows state of charge, time remaining, voltage, current, power and full history for your battery bank. It's the easiest way to add proper battery monitoring to a caravan, camper, boat, 4WD or off-grid system, with no panel to cut into a wall.
Standard or IP65?
The standard SmartShunt suits dry installs: battery boxes, under-seat compartments, switchboards. The IP65 SmartShunt is fully water and dust resistant, with the electronics sealed into the shunt. Choose it for engine bays, bilges, trays and anywhere exposed to spray or weather. Both work the same way and pair with the same app.
Choosing a size
Pick a shunt rated above the highest continuous current your system draws or charges at. 300A suits most campers and small boats, 500A covers larger inverters (up to around 3000W on 12V), and 1000A or 2000A suit big 12V inverters and high-current systems.
Key features
- Bluetooth and VictronConnect: state of charge, time to go, voltage, current, power and consumed amp-hours, plus history and alarms.
- Auxiliary input: monitor a second battery (e.g. starter battery), battery bank midpoint, or temperature with the optional temperature sensor.
- VE.Direct port: connect to a Cerbo GX or other GX device for remote monitoring on the VRM portal.
- VE.Smart Networking: shares battery voltage, current and temperature with Victron chargers and solar controllers for more accurate charging.
- Works with any chemistry: lead acid, AGM, gel and lithium, with adjustable battery capacity, Peukert and charge efficiency settings.
- Tiny standby draw: under 1mA.
Specifications
| Ratings | 300A, 500A, 1000A, 2000A (50mV shunt) |
| Supply voltage range | 6.5–70VDC (12V, 24V and 48V systems) |
| Current draw | < 1mA |
| Auxiliary input | 6.5–70VDC: second battery, midpoint or temperature |
| Resolution | ±0.01A, ±0.01V, ±1°C (temperature with optional sensor) |
| Accuracy | Current ±0.4%, voltage ±0.3% |
| Operating temperature | -40 to +50°C |
| Communication | Bluetooth (VictronConnect), VE.Direct |
| Protection | Standard: IP21 | IP65 version: water and dust resistant |
Optional temperature sensor sold separately. Ask us if you need one with your shunt.
| Brand | Victron |
|---|---|
| SKU / Part No. | SHU050130050 |
| Category | Battery Monitors |
| Rating options | 300A, 500A, 1000A, 2000A |
| Enclosure options | Standard, IP65 waterproof |
| Availability | Special Order — call (07) 4052 1901 |
