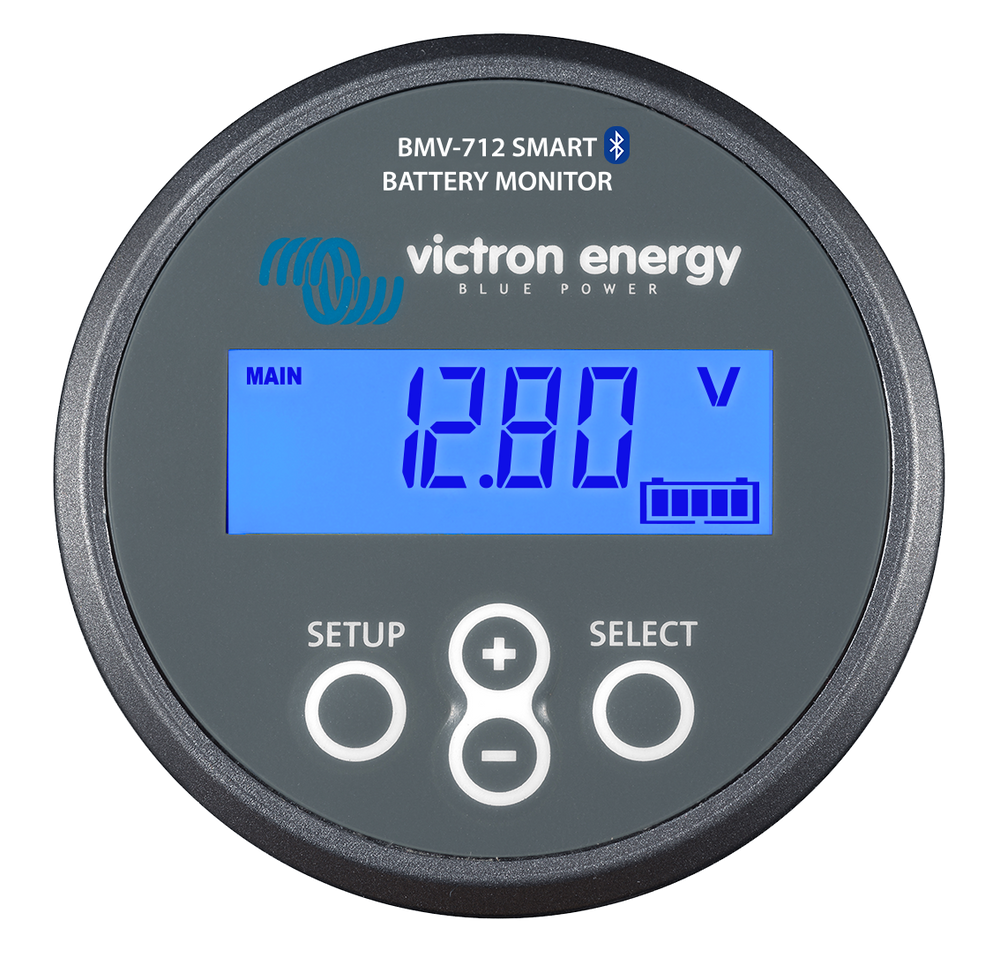

The Victron BMV is the classic panel-mounted battery monitor: a clear display on the wall showing exactly what your battery is doing. It reads state of charge, voltage, current, power, consumed amp-hours and time remaining, using a precision shunt (included) on the battery negative. It's the go-to for caravans, boats, trucks and off-grid systems where you want the numbers in front of you at a glance.
Which model?
| BMV-712 Smart | Display plus built-in Bluetooth for the VictronConnect app, VE.Smart Networking, and an aux input for a second battery, midpoint or temperature. The one most people should buy. |
| BMV-702 | Display with the aux input (second battery, midpoint or temperature), but no Bluetooth. Add the VE.Direct Bluetooth dongle if you want app access later. |
| BMV-700 | Single-battery monitor with display. No aux input, no Bluetooth. |
Key features
- Accurate state of charge from a 500A precision shunt, with Peukert and charge-efficiency compensation.
- Clear backlit display in a 52mm round panel cut-out (or surface mount with the optional mounting box).
- Programmable alarm relay to start a generator or sound an alarm on low state of charge or voltage.
- VE.Direct port for connection to a Cerbo GX or other GX device and remote monitoring on VRM.
- History including deepest discharge, number of cycles and total energy in and out.
- Black or silver bezel on the BMV-712 and BMV-702.
Specifications
| Supply voltage range | 6.5–70VDC (12V, 24V and 48V systems) |
| Shunt | 500A / 50mV, included with connection kit |
| Current draw | < 4mA (backlight off) |
| Aux input | BMV-712 and BMV-702: second battery, midpoint or temperature (sensor optional) |
| Relay | 60V / 1A normally open, programmable |
| Communication | VE.Direct (all models), Bluetooth (BMV-712 Smart) |
| Display | 65 x 65 mm front bezel, 52 mm round cut-out |
| Operating temperature | -40 to +50°C |
| Brand | Victron |
|---|---|
| SKU / Part No. | BAM030712000 |
| Category | Battery Monitors |
| Weight | 0.3 kg |
| Model options | BMV-712 Smart, BMV-702, BMV-700 |
| Colour options | Silver, Black |
| Availability | Special Order — call (07) 4052 1901 |
