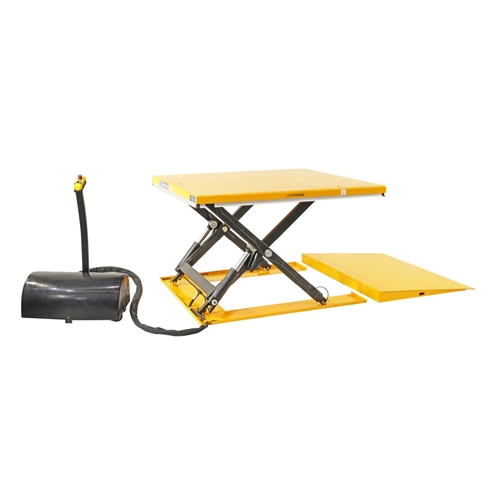

Low Profile Electric Pallet Lift Table

Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
Powder coated finish
Low clearance – only 85mm
Supplied with entry ramp to allow pallet truck entry
Can be supplied with optional rotator ring/turntable if required
Tables are specially made for handling pallets, no need for a pit or load ramps
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
24v control box with UP and DOWN buttons and emergency stop
External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
Power Supply: 240v (3 phase 415v availabe if required)
Hose burst safety valve to stop the lift table lowering in case of hose breakage
Removable lifting bolts to facilitate handling and installation of the lift table
Oil-less bushings on pivot points

Additional information

Capacity	1000kg, 2000kg
