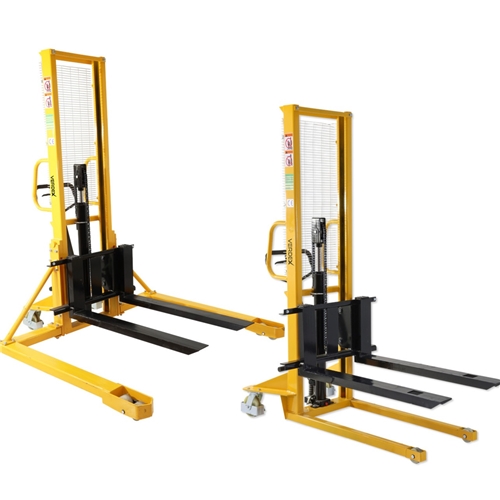

Heavy Duty Manual Fork Stackers
$1,995.00 – $3,295.00
- These manual fork stackers are constructed from very heavy duty materials, and are an economical alternative to forklifts.
- Manual hydraulic lift via pallet truck style handle or foot pedal.
- Straddle leg model for use with standard 1170mm Australian pallets.
- Standard leg model for use on Euro pallets and small skids.
- Lockable wheels are standard on all models.
- Tine Length: 1060mm
Code |
Details |
Load Capacity |
Rear Castors |
Front Castors |
Lifting Range |
Overall Width of Tines |
Overall Size (LxWxH) |
Unit Weight |
| V2280 | Standard Leg | 500kg | 150mm | 80mm | 90-1600mm | 200-745mm | 1640x805x2000mm | 160kg |
| V2281 | Straddle Leg | 500kg | 150mm | 80mm | 70-1600mm | 200-950mm | 1600x1500x2000mm | 225kg |
| V2282 | Standard Leg | 1000kg | 150mm | 80mm | 90-1600mm | 200-700mm | 1640x1000x2085mm | 250kg |
| V2283 | Straddle Leg | 1000kg | 150mm | 80mm | 70-1600mm | 200-950mm | 1560x1450x2050mm | 295kg |
Additional information
| Capacity | 500kg, 1000kg |
|---|---|
| Configuration | Standard Leg, Straddle Leg |
