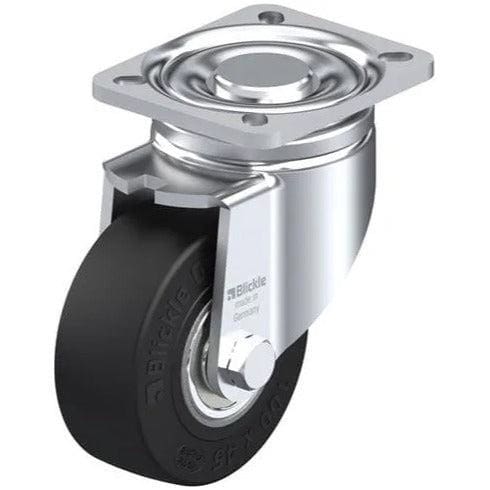

Pressed steel swivel castor, heavy duty design, with top plate fitting, heavy duty wheel, with ‘Blickle EasyRoll’ elastic solid rubber tyres, with nylon wheel centre
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: SE series
- tyre: high-quality elastic solid rubber “Blickle EasyRoll” in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
Other features:
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
| Wheel Ø (D) | 100 mm | |
| Wheel width | 45 mm | |
| Load capacity at 4 km/h | 270 kg | |
| Load capacity (static) | 675 kg | |
| Bearing type | ball bearing | |
| Total height (H) | 140 mm | |
| Installation type | top plate | |
| Plate size | 100 x 85 mm | |
| Bolt hole spacing | 80 x 60 mm | |
| Bolt hole Ø | 9 mm | |
| Offset (F) | 45 mm | |
| Temperature resistance min | -20 °C | |
| Temperature resistance max | 80 °C | |
| Tread and tyre hardness | 65 Shore A | |
| Unit weight | 1.9 kg |
