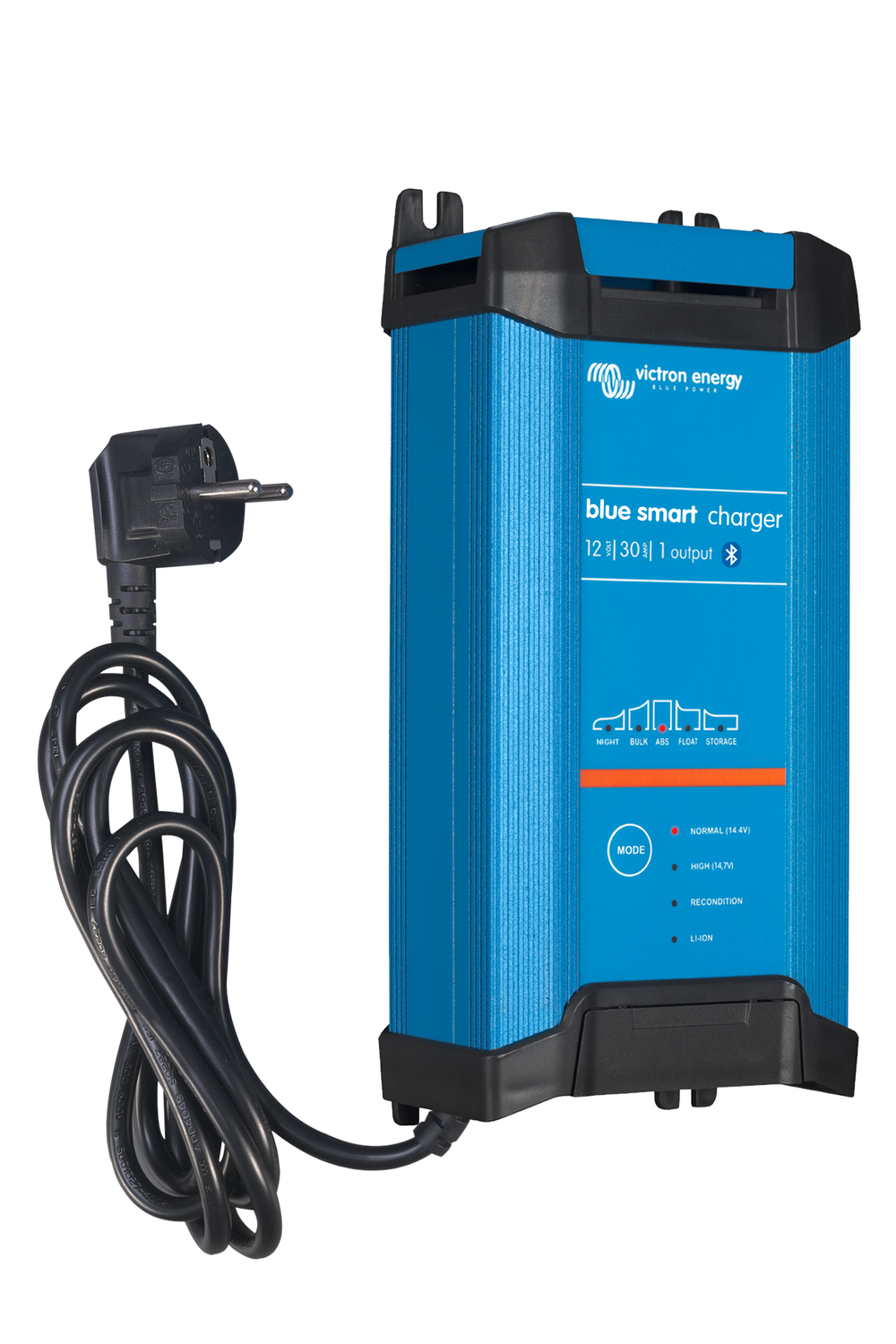

The Victron Blue Smart IP22 is a professional workshop-grade battery charger with Bluetooth built in. It suits cars, 4WDs, motorbikes, boats, caravans and campers, and works with flooded, AGM, gel and lithium (LiFePO4) batteries. Available in 12V (15, 20 or 30A) and 24V (8, 12 or 16A), with single-output or three-output versions for charging a start battery and house banks at the same time.
Key features
- Bluetooth and the VictronConnect app: watch voltage and current live, change settings, view a 40-cycle charge history and update firmware from your phone.
- Adaptive 6-stage charging: test, bulk, absorption, recondition, float and storage. The charger adjusts the cycle to suit how the battery is being used.
- Storage mode: after 24 hours with no discharge, voltage drops to reduce gassing and plate corrosion, with a weekly top-up to prevent sulfation. Ideal for vehicles and boats that sit for long periods.
- Lithium ready: dedicated Li-ion mode, and it will recover batteries discharged to zero volts, including lithium batteries with an internal disconnect.
- Runs cool and quiet: up to 94% efficient, with 0.5W standby once the battery is full. NIGHT and LOW modes halve the output and run silently.
- VE.Smart Networking: pair with a Smart Battery Sense, SmartShunt or BMV-712 for temperature and voltage compensated charging, or sync up to ten chargers on one bank.
- Doubles as a power supply, with reverse polarity, short circuit and over-temperature protection.
- 5-year Victron warranty.
Specifications
| Models | 12V: 15A, 20A, 30A (1 or 3 outputs) 24V: 8A, 12A, 16A (1 output), 16A (3 outputs) |
| Input voltage | 180–265 VAC, 45–65 Hz |
| Charge current (NIGHT/LOW mode) | 12V: 7.5 / 10 / 15A 24V: 4 / 6 / 8A |
| Efficiency | 12V: 93% | 24V: 94% |
| No-load power draw | 0.5W |
| Absorption voltage | 12V: 14.4V normal / 14.7V high / 14.2V Li-ion 24V: 28.8V normal / 29.4V high / 28.4V Li-ion |
| Float voltage | 12V: 13.8V / 13.8V / 13.5V Li-ion 24V: 27.6V / 27.6V / 27.0V Li-ion |
| Storage voltage | 12V: 13.2V / 13.2V / 13.5V Li-ion 24V: 26.4V / 26.4V / 27.0V Li-ion |
| Charge algorithm | 6-stage adaptive |
| Protection | Reverse polarity (fuse), output short circuit, over temperature |
| Operating temperature | -40 to +60°C (full rated output up to 40°C) |
| Humidity | Max 98% non-condensing |
| Enclosure | Aluminium, blue, IP22 |
| Battery connection | Screw terminals, 16 mm² / 6 AWG |
| Mains lead | 1.5 m with AS/NZS 3112 (Australian) plug |
| Weight | 1.3 kg |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Standards | EN 60335-1, EN 60335-2-29, ECE R10-5 (automotive), AS/NZS certified |
| Brand | Victron |
|---|---|
| SKU / Part No. | BPC121542012 |
| Barcode | 2228672986826 |
| Category | AC Chargers |
| Voltage options | 12V, 24V |
| Amperage options | 15A, 20A, 30A, 8A, 12A, 16A |
| Number of Outputs options | 1, 3 |
| Availability | Special Order — call (07) 4052 1901 |
