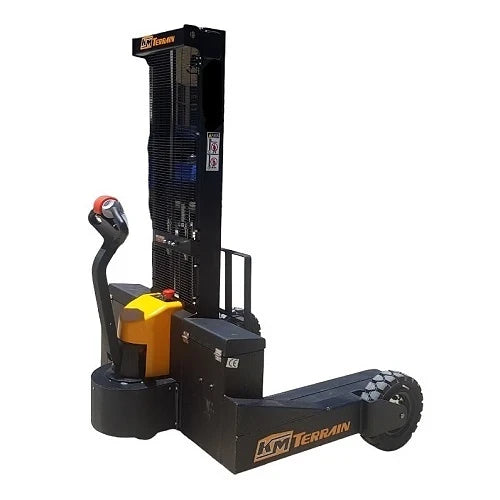

Rough Terrain Electric Stacker 2T - 1.6m Lift Height - Adjustable Forks - Multi-Attachment System

The KMT-2016 Rough Terrain Electric Stacker is designed to simplify material handling in rough, uneven, and outdoor environments where standard forklifts struggle to operate.

With a 2,000kg lifting capacity and a maximum lift height of 1.6m, this walk-behind electric stacker is ideal for unloading trucks, handling pallets in yards, and operating across construction sites, farms, warehouses with outdoor access, and industrial environments.

This model can be used as a standalone stacker and is also designed as part of a multi-function system compatible with optional attachments (sold separately), including drum handlers, wheelie bin lifters, and jib attachments.

Built for Versatility

The KMT-2016 can operate across a wide range of demanding environments, reducing the need for multiple machines.

• 2,000kg load capacity
• Maximum lift height: 1.6m
• Suitable for rough terrain and uneven surfaces
• Walk-behind electric operation (no licence required in most applications)
• Adjustable forks for flexible load handling
• Large pneumatic rubber tyres for stability indoors and outdoors
• Multi-function control handle with variable speed control
• Emergency reverse safety function
• Integrated battery system with charger and battery level indicator
• Compatible with multiple attachments (sold separately)

Attachments (Optional)

• Drum handling attachment
• Wheelie bin lifter attachment
• Jib crane attachment

Optional attachments are available below the product listing and can be added directly to cart.

Technical Specifications

General

• Model: KMT-2016
• Rated Capacity: 2000kg
• Load Centre: 500mm
• Wheelbase: 1150mm

Dimensions

• Lift Height: 1600mm
• Lowered Height: 50mm
• Overall Length: 1752mm
• Overall Width: 1575mm
• Fork Size: 40/100/1070mm
• Fork Carriage Width: 840mm
• Ground Clearance: 100mm
• Turning Radius: 1780mm

Performance

• Travel Speed (loaded/unloaded): 3.5 / 7 km/h
• Gradeability (loaded/unloaded): 5% / 10%
• Brake Type: Electromagnetic
• Lift Speed (with load): 13 mm/s

Power System

• Drive Motor: AC 1.5 kW
• Lift Motor: DC 24V / 2000W
• Battery: 2 × 12V / 100Ah
• Battery Weight: 70kg
• Charger: Integrated
• Controller: Curtis 1232E-2121

Wheels & Build

• Drive Tyre: 300 × 125 mm rubber
• Load Wheels: 406 × 110 mm rubber
• Steering: Mechanical
• Sound Level: 74 dB
