Electrodrive Retractable Powered Fifth Wheel

A retrofittable solution for converting manually-pushed hospital beds into powered ones

Retractable Powered Fifth Wheel

Features at a glance
400 kg capacity on flat ground
Retractable drive wheel.
Ergonomic hand controls.
Powers a manually-pushed bed.

The P5W powered bed mover fitted to a hospital bed

Electrodrive's P5W (retractable) in action

Electrodrive's P5W can fit easily into a lift

Retrofittable powered bed-moving kit

The Powered Fifth Wheel (P5W) is a retrofittable solution for converting your manually-pushed hospital beds into powered ones.

Controlled with an ergonomically designed control grip for a natural walking posture, the Powered Fifth Wheel works with your bed’s other four wheels to help you move patients safely and efficiently.

The retractable fifth wheel provides maximum manoeuvrability and can be lifted or lowered at the simple press of a button on the hand control unit. It requires a minimum ground clearance of 200 mm underneath the bed, trolley or stretcher.

Proudly designed and manufactured in Australia.

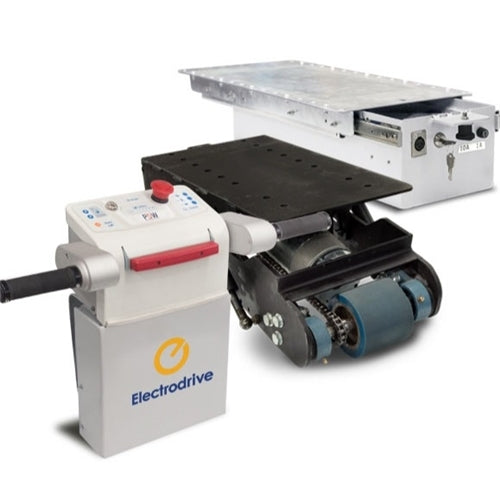

The Retractable Powered Fifth Wheel kit contains:

A powerful motorised retractable drive-wheel.
A ‘Gzunda’ style two-hand control unit.
A slide-out battery carriage.
A battery charger.

Typical applications

A retrofittable solution for converting manually-pushed hospital beds into powered ones.

Features and specifications

Load capacity	Move up to 400 kg on flat ground.
Max. speed	Up to 4.5 km per hour.
Speed mode	Three speed control with forward, reverse and emergency stop.
Usability	Intuitive controls with twist-grip throttle and horn. Battery operated and rechargeable. Ergonomic design. Maximum manoeuvrability with the reatractable drive wheel. Simple to use. Quiet, smooth operation. Zero emissions.
Country of origin	Designed and manufactured in Australia.
Safety features	Emergency stop button. Emergency back-off button.
Warranty	Comprehensive 12-month warranty. Six month warranty on battery and charger.
Service	Training and servicing programs are available. Download our Preventative Maintenance Plans for more information.
Battery	Standard: Two 12V-33Ah rechargeable batteries (assembled within slide-out carriage) with 24V smart charger. (International chargers are also available.)
Battery	Upgrade: Lithium Ion (Li-ion) battery upgrades are available for maximum hours of operation between charges. The upgrade code includes changing the battery, smart charger and socket. Order code: BATLIONLIGHT
Dimensions (L/W/H)	Drive wheel: 511/285/150-300 mm
