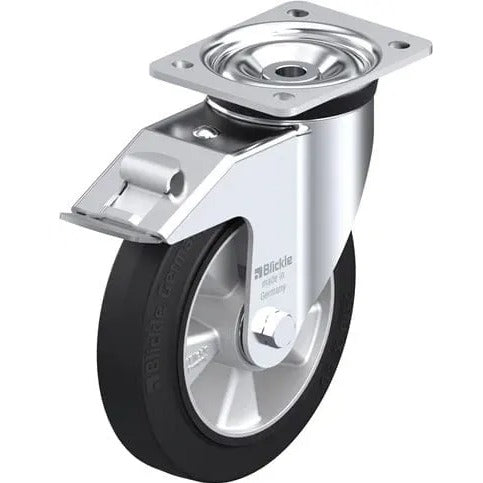

Blickle LK-ALEV 200K-FI - Braked - 500kg

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre

Bracket: LK series

• strong pressed steel, zinc-plated, blue-passivated, Cr6-free
• double ball bearing in the swivel head
• strong central kingpin (from wheel Ø 125x50 mm)
• swivel head seal
• minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: ALEV series

• tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
• wheel centre: die-cast aluminium

Other features:

• high chemical resistance to many aggressive substances, except oils
• operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C

Brand	Blickle
SKU / Part No.	LK-ALEV 200K-FI
Barcode	7454131466
Category	Blickle Castors
Bolt hole diameter	11 mm
Bolt hole spacing	105 x 75–80 mm
Castor height	245 mm
Load capacity	500kg
Mount type	Top plate
Offset	59 mm
Platform size	140 x 110 mm
Recommended load capacity	1,250 kg
Temperature max	70 °C
Temperature min	-20 °C
Tread hardness	65 Shore A
Weight	4.1 kg
Wheel bearing type	Ball Bearing
Wheel diameter	200mm
Wheel width	50mm
