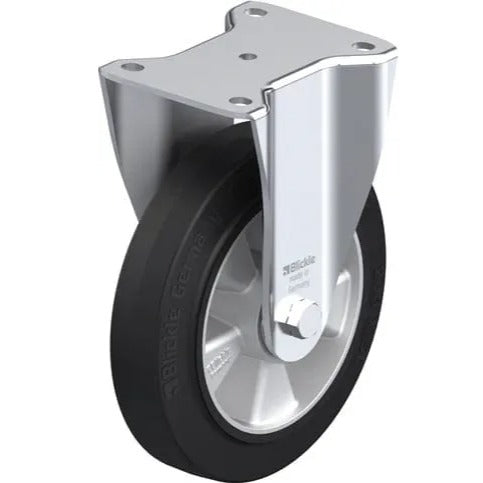

Blickle BH-ALEV 200K - Fixed - 500kg

Pressed steel fixed castor, heavy duty design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre

Bracket: BH series

• pressed steel, zinc-plated, blue-passivated, Cr6-free
• heavy fork and top plate

Wheel: ALEV series

• tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
• wheel centre: die-cast aluminium

Other features:

• high chemical resistance to many aggressive substances, except oils
• operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C

Brand	Blickle
SKU / Part No.	BH-ALEV 200K
Barcode	3221262864
Category	Blickle Castors
Bolt hole diameter	11 mm
Bolt hole spacing	105 x 75–80 mm
Castor height	245 mm
Load capacity	500kg
Mount type	Top plate
Platform size	140 x 110 mm
Recommended load capacity	1,250 kg
Temperature max	80 °C
Temperature min	-20 °C
Tread hardness	65 Shore A
Weight	2.9 kg
Wheel bearing type	Ball Bearing
Wheel diameter	200mm
Wheel width	50mm
Availability	In stock at Lift Easy Townlec
