Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

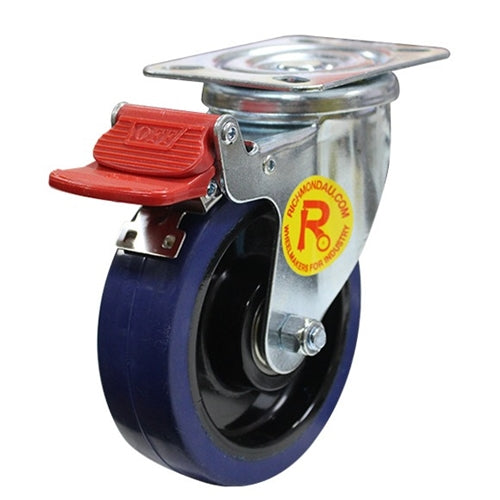

The S5042B by Richmond Rolling Solutions is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S5042B is assembled with ball bearings on the castors axle and is plate mount. This castors swivel frame permits the load to be steered. The overall rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). For the same castor without a brake, see S5042.
| Wheel Diameter (mm) | 125 |
|---|---|
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR5077-37 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Brand | Richmond |
|---|---|
| SKU / Part No. | S5042B |
| Barcode | 9331244023854 |
| Category | Richmond Castors |
| Castor height | 157 mm |
| Frame construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Frame material | Zinc Plated Steel |
| Frame type | Swivel Brake |
| Load capacity | 200kg |
| Mount type | Plate mount |
| Recommended load capacity | 150 kg |
| Swivel radius | 125 mm |
| Wheel bearing type | Steel Shielded Deep Groove Ball Bearings |
| Wheel code | RR5077-37 |
| Wheel diameter | 125mm |
| Wheel material | Rebound Rubber |
| Wheel width | 35mm |
| Availability | In stock at Lift Easy Townlec |
